RUBBER BELLOW SEAL

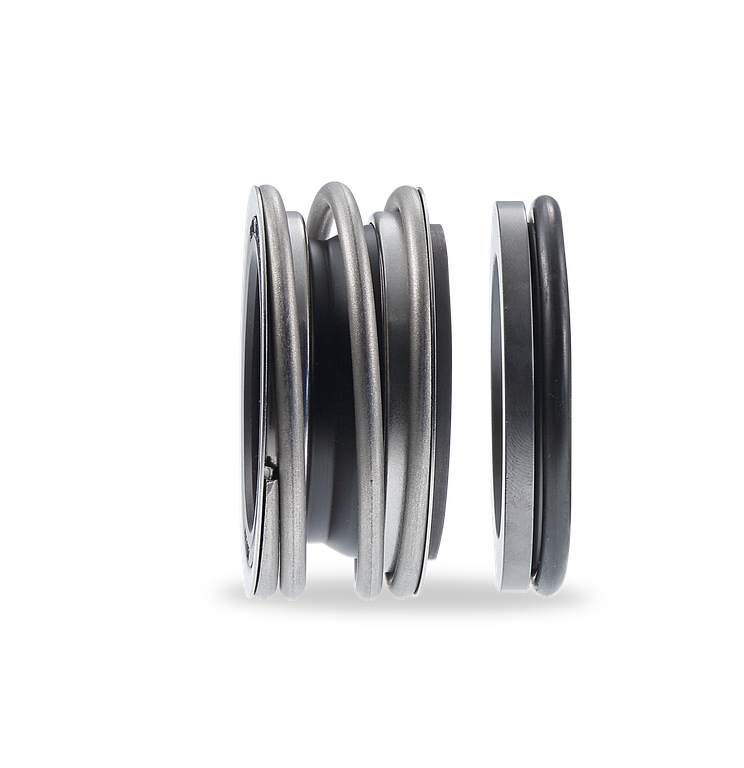

JMG1

Inside Mounted, Rubber Bellow

Shaft Diameter (Size): 10 to 100 mm
Pressure : 13 Bars(max)
Temperature : -20 to +100°C
Velocity : Up to 10 m/sec
Application : Water Pumps, Submersible & Sewage Pumps.

J2100

Inside Mounted, Rubber Bellow, Inside Mounted, Rubber Bellow

Shaft Diameter (Size): 16 to 75 mm
Pressure : 18 Bars(max)
Temperature : -20 to +180°C
Velocity : Up to 20 m/sec
Application : Pumps.

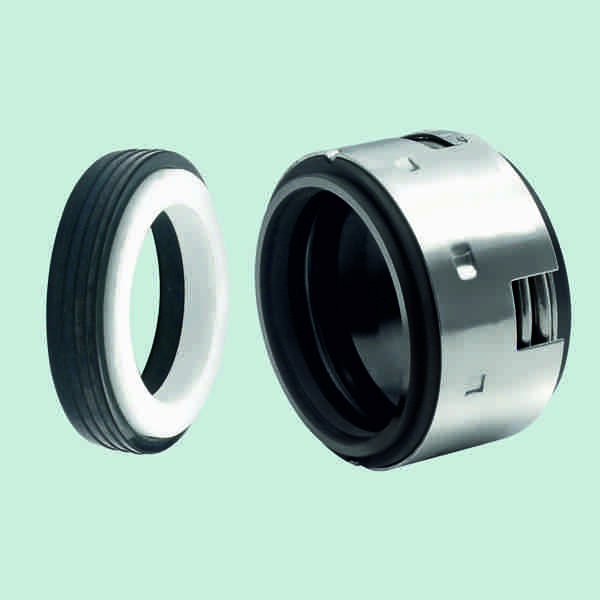

J502

Inside Mounted, Rubber Bellow, Inside Mounted, Rubber Bellow

Shaft Diameter (Size): 16 to 75 mm
Pressure : 30 Bars(max)
Temperature : -20 to +180°C
Velocity : Up to 20 m/sec
Application : Pumps.

J TYPE-2 & TYPE-1

Inside Mounted, Rubber Bellow

Shaft Diameter (Size): 16 to 75 mm
Pressure : 18-30 Bars(max)
Temperature : -20 to +120°C
Velocity : Up to 20 m/sec
Application : Water Pumps, Mixer Compressors & Blenders

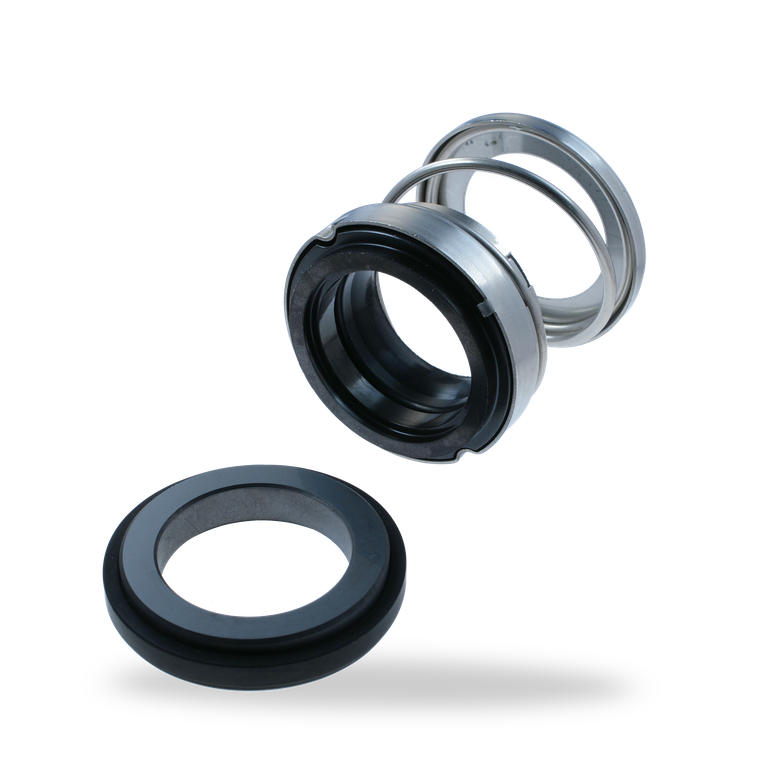

JRB43 & J560

Inside Mounted, Rubber Bellow

Shaft Diameter (Size): 12 to 75 mm
Pressure : 10 Bars(max)
Temperature : -20 to +100°C
Velocity : Up to 20 m/sec
Application : Water Pumps. Submersible Pumps & Hot Oil Pumps

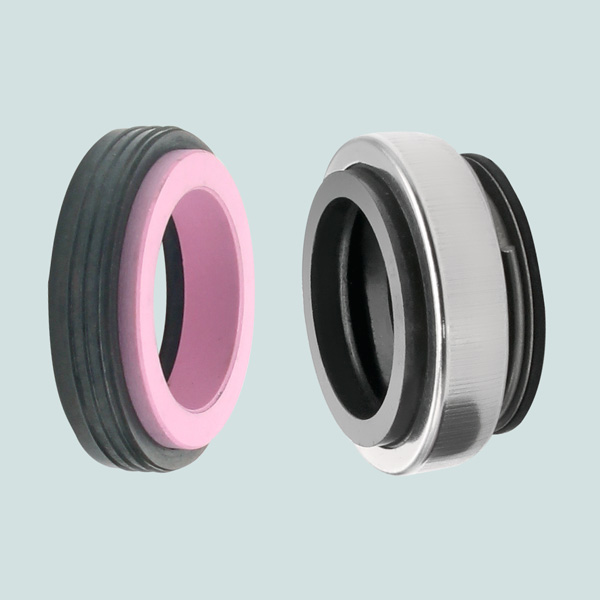

JSTORK

Inside Mounted, Rubber Bellow

Shaft Diameter (Size): 10 to 70 mm
Pressure : 5 Bars(max)
Temperature : -20 to +100°C
Velocity : Up to 20 m/sec
Application : Water Pumps.
