ENGINEERED SEALS

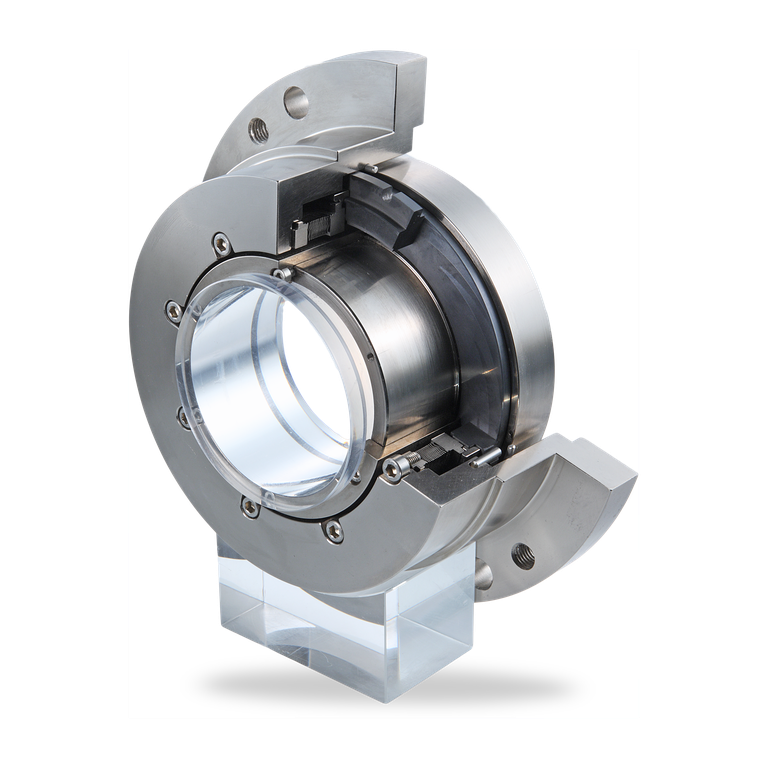

JA6100 / COMPRESSOR SEAL
Single Seal Balance, Independent of direction of rotation
| Shaft Diameter (Size): | 18-100mm |
|---|---|
| Pressure : | 20 Bars(max) |
| Temperature : | -20 to +180°C |
| Velocity : | Up to 20 m/s |
| Application : | Process Industry, Slury Pumps, Chemical Industry, Water Treatment Pulp |

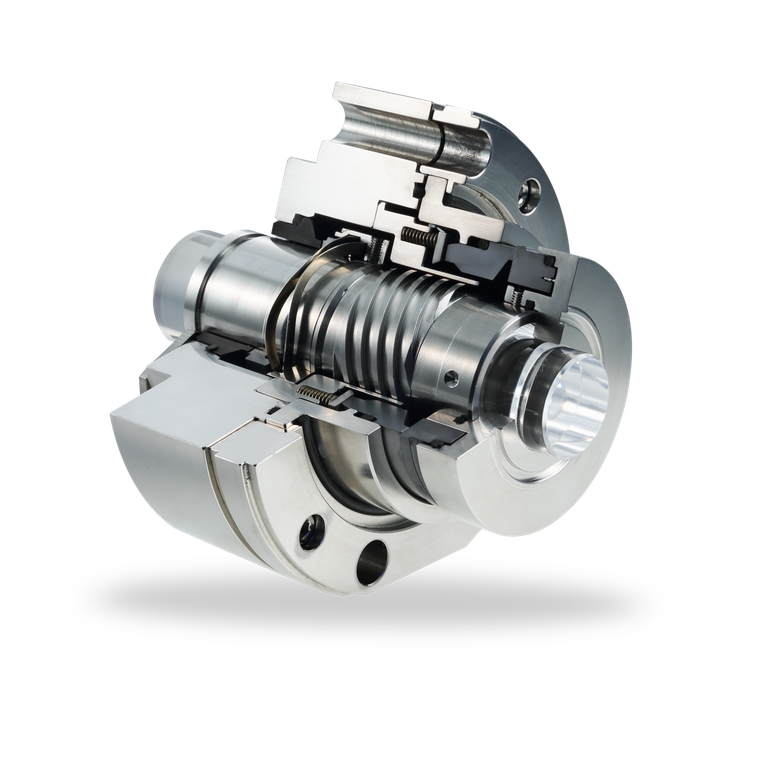

JA6200
Single / Dual Seal Balanced, Independent of direction of rotation
| Shaft Diameter (Size): | 25-100mm |
|---|---|
| Pressure : | 25 bar |
| Temperature : | -40 to 220 c |
| Velocity : | 20m/sec |
| Application : | Chemical Industry, Petrochemical Industry, Oil & Gas Industry,Process Industry, ANSI Process Pump, Pulp & Paper Industry |

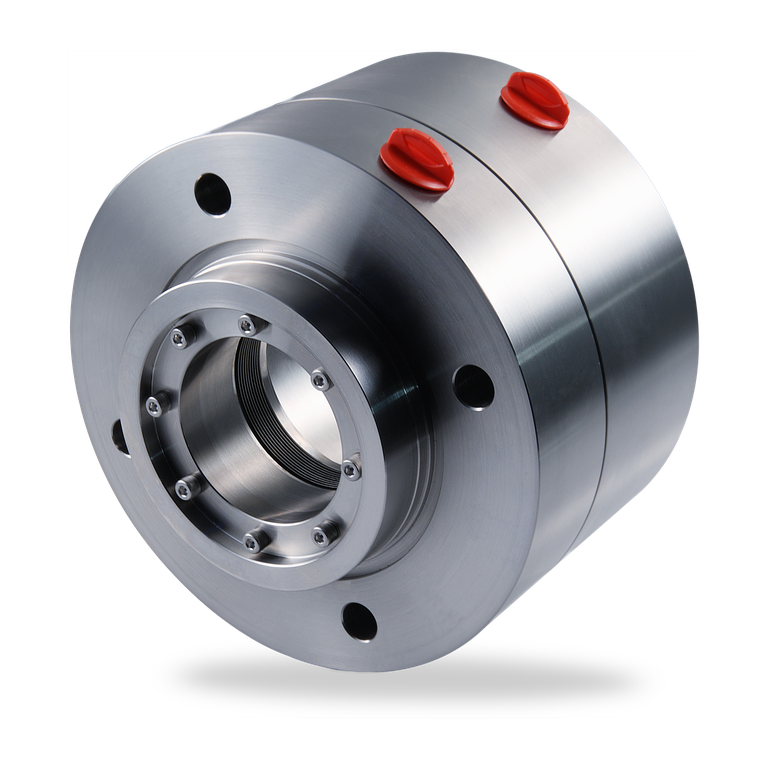

JA6300
Single / Dual Seal Balanced, Independent of direction of rotation, Metal Bellows
| Shaft Diameter (Size): | 20-80mm |
|---|---|
| Pressure : | 25 bar |
| Temperature : | -40 to 220 c |
| Velocity : | 20m/sec |
| Application : | Chemical Industry, Process Industry, Hot/Cold media, Highly viscous media, Pumps, Special Rotating Equipment Engineered Seals |

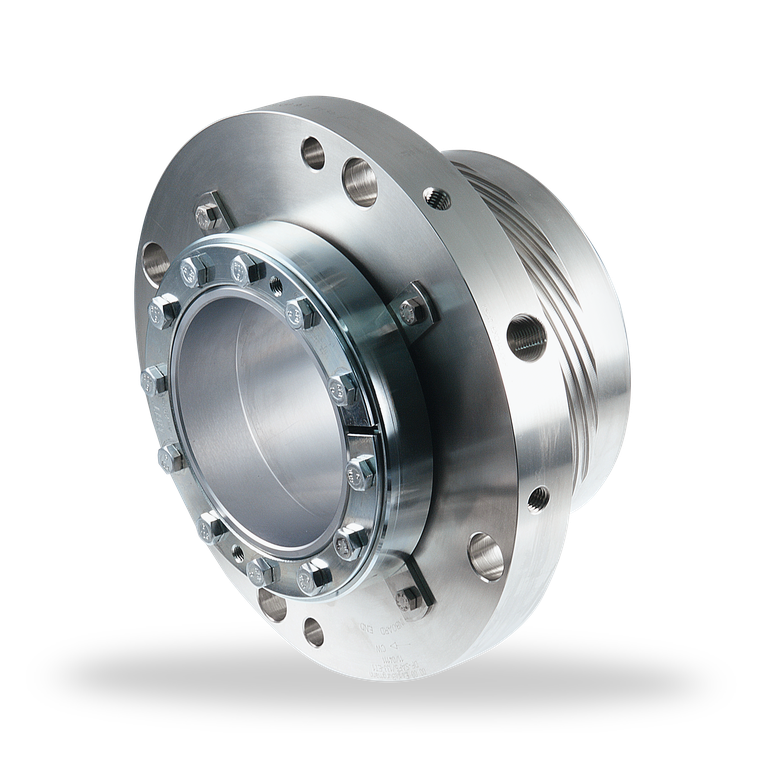

JA6400
Single Seal Balanced, Independent of direction of rotation, Springs isolated from medium
| Shaft Diameter (Size): | 20-80mm |
|---|---|
| Pressure : | 18 bar |
| Temperature : | -20 to 180 c |
| Velocity : | 20m/sec |
| Application : | Process Industry, Slurry Pumps, Food Industry, Petrochemical Industry |

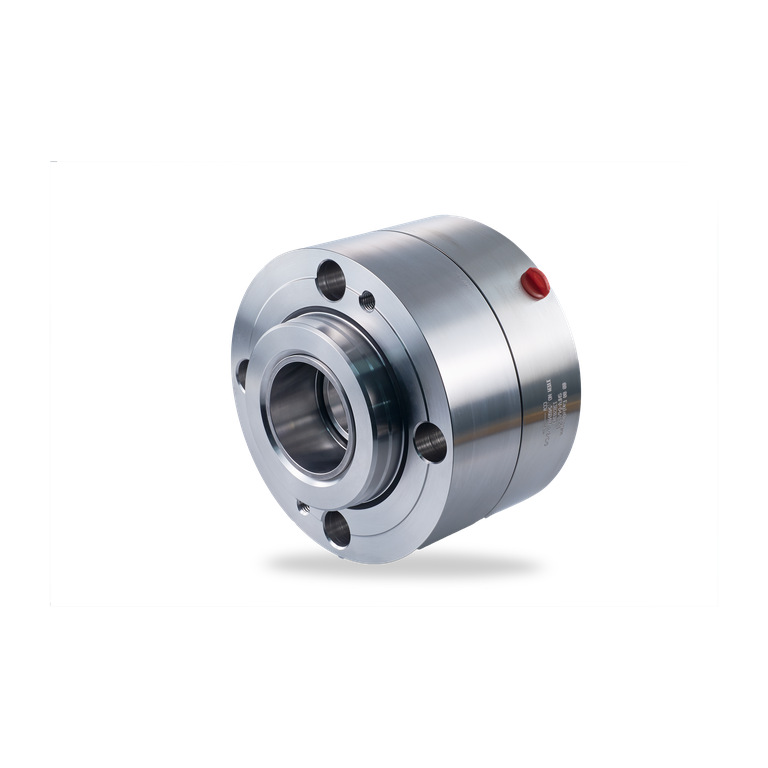

JA6500
Dual Seal Balanced, Independent of direction of rotation, Multiple Springs
| Shaft Diameter (Size): | 40-240mm |
|---|---|
| Pressure : | 150 bar |
| Temperature : | 0 to 200 c |
| Velocity : | 60m/sec |
| Application : | Process Industry, Crude Oil Feed Pumps, Chemical Industry, Power Plant, Oil & Gas. |

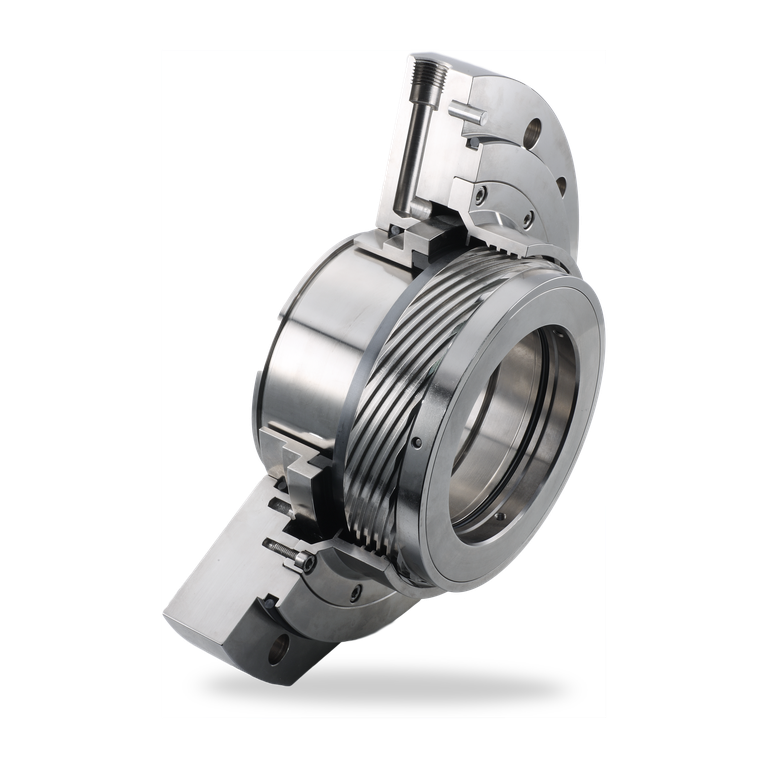

JA6600/Boiler Feed Water Seals
Single Seal Balanced, Independent of direction of rotation, Spring isolated from medium
| Shaft Diameter (Size): | 20-80mm |
|---|---|
| Pressure : | 18 bar |
| Temperature : | -20 to 180 c |
| Velocity : | 20m/sec |
| Application : | Process Industry, Slurry Pumps, Chemical Industry, Water Treatment, Food Industry |
